使用 Qdrant 扩展 PDF 检索

# pip install colpali_engine>=0.3.1
from colpali_engine.models import ColPali, ColPaliProcessor
# pip install qdrant-client>=1.12.0
from qdrant_client import QdrantClient, models

client = QdrantClient(
    url=<YOUR CLUSTER URL>,
    api_key=<YOUR API KEY>
)

colpali_model = ColPali.from_pretrained(
        "vidore/colpali-v1.3",
        torch_dtype=torch.bfloat16,
        device_map="mps",  # Use "cuda:0" for GPU, "cpu" for CPU, or "mps" for Apple Silicon
    ).eval()

colpali_processor = ColPaliProcessor.from_pretrained("vidore/colpali-v1.3")

client.create_collection(
    collection_name=collection_name,
    vectors_config={
        "original":
            models.VectorParams( #switch off HNSW
                    size=128,
                    distance=models.Distance.COSINE,
                    multivector_config=models.MultiVectorConfig(
                        comparator=models.MultiVectorComparator.MAX_SIM
                    ),
                    hnsw_config=models.HnswConfigDiff(
                        m=0 #switching off HNSW
                    )
            ),
        "mean_pooling_columns": models.VectorParams(
                size=128,
                distance=models.Distance.COSINE,
                multivector_config=models.MultiVectorConfig(
                    comparator=models.MultiVectorComparator.MAX_SIM
                )
            ),
        "mean_pooling_rows": models.VectorParams(
                size=128,
                distance=models.Distance.COSINE,
                multivector_config=models.MultiVectorConfig(
                    comparator=models.MultiVectorComparator.MAX_SIM
                )
            )
    }
)

from datasets import load_dataset
ufo_dataset = "davanstrien/ufo-ColPali"
dataset = load_dataset(ufo_dataset, split="train")

x_patches, y_patches = model_processor.get_n_patches(
    image_size,
    patch_size=model.patch_size
)

processed_images = model_processor.process_images(image_batch)
# Image embeddings of shape (batch_size, 1030, 128)
image_embeddings = model(**processed_images)

# (1030, 128)
image_embedding = image_embeddings[0] # take the first element of the batch

# Now we need to identify vectors that correspond to the image tokens
# It can be done by selecting tokens corresponding to special `image_token_id`

# (1030, ) - boolean mask (for the first element in the batch), True for image tokens
mask = processed_images.input_ids[0] == model_processor.image_token_id

# For convenience, we now select only image tokens
#   and reshape them to (x_patches, y_patches, dim)

# (x_patches, y_patches, 128)
image_patch_embeddings = image_embedding[mask].view(x_patches, y_patches, model.dim)

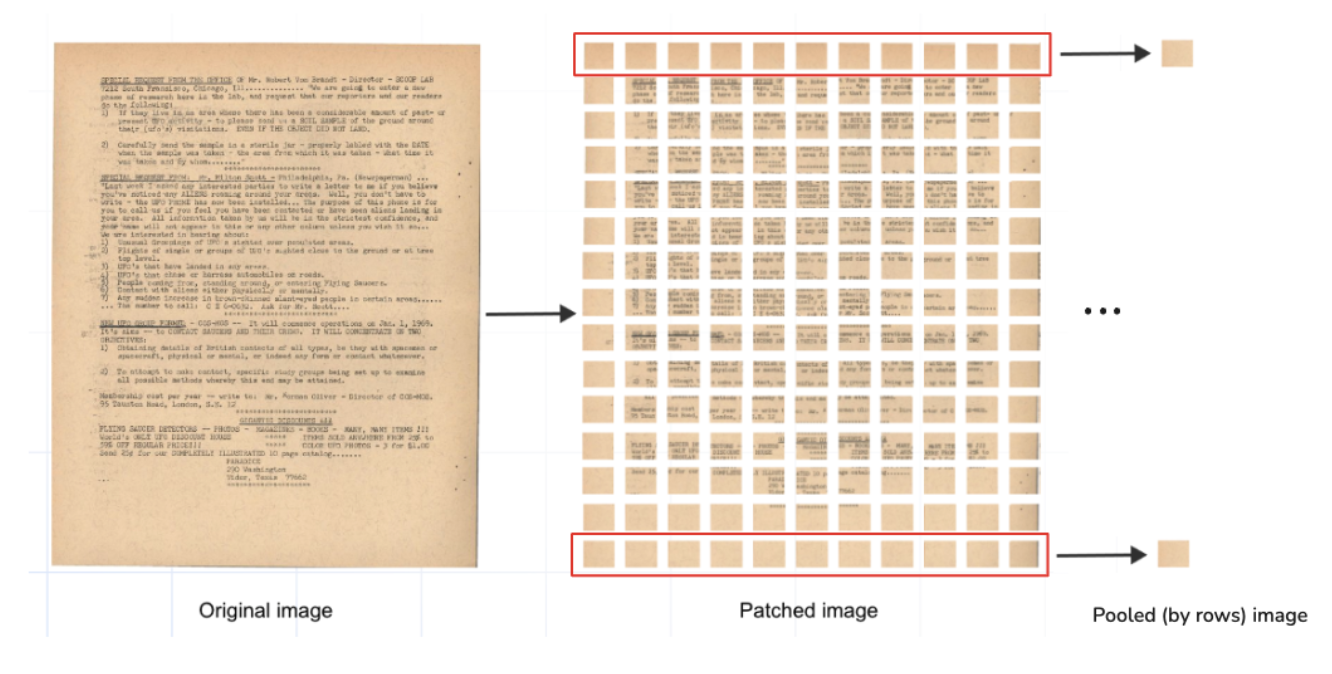

# Now we can apply mean pooling by rows and columns

# (x_patches, 128)
pooled_by_rows = image_patch_embeddings.mean(dim=0)

# (y_patches, 128)
pooled_by_columns = image_patch_embeddings.mean(dim=1)

# [Optionally] we can also concatenate special tokens to the pooled representations,
# For ColPali, it's only postfix

# (x_patches + 6, 128)
pooled_by_rows = torch.cat([pooled_by_rows, image_embedding[~mask]])

# (y_patches + 6, 128)
pooled_by_columns = torch.cat([pooled_by_columns, image_embedding[~mask]])

query = "Lee Harvey Oswald's involvement in the JFK assassination"
processed_queries = model_processor.process_queries([query]).to(model.device)

# Resulting query embedding is a tensor of shape (22, 128)
query_embedding = model(**processed_queries)[0]

# Final amount of results to return
search_limit = 10
# Amount of results to prefetch for reranking
prefetch_limit = 100

response = client.query_points(
    collection_name=collection_name,
    query=query_embedding,
    prefetch=[
        models.Prefetch(
            query=query_embedding,
            limit=prefetch_limit,
            using="mean_pooling_columns"
        ),
        models.Prefetch(
            query=query_embedding,
            limit=prefetch_limit,
            using="mean_pooling_rows"
        ),
    ],
    limit=search_limit,
    with_payload=True,
    with_vector=False,
    using="original"
)

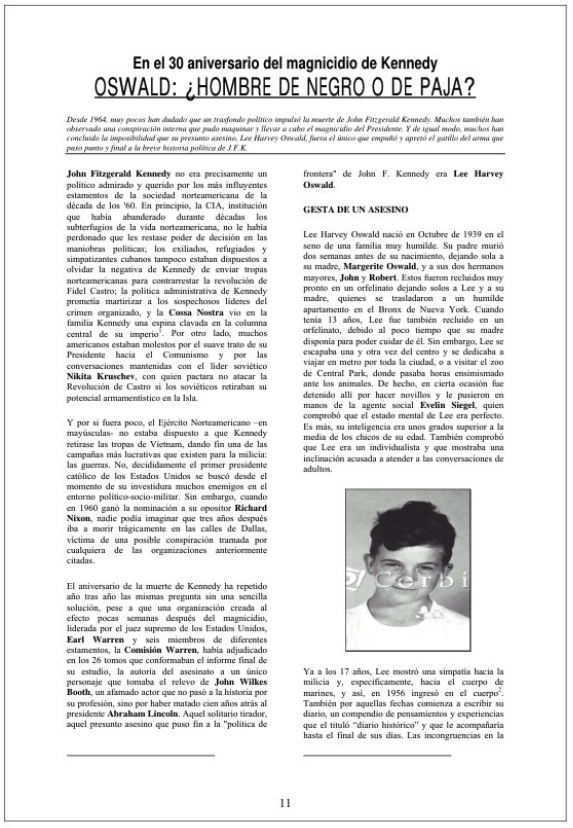

dataset[response.points[0].payload['index']]['image']
